SW-350-PRO-WDL Computer Setworks for Woodland Mills Sawmills

The SW-350-PRO-WDL automatically positions the sawhead for each cut.
Think of it as a calculator for the sawyer — it does the calculations and automatically positions the sawhead.

You work with the board thicknesses you want to cut. The setworks calculates the next cut, takes blade kerf into account, and moves the sawhead to the correct height with high accuracy.
It also supports cutting lists, saved board thicknesses, and on-screen hints that help you make better cutting decisions and get more lumber from each log.

Positioning is repeatable to +1/32", cut after cut, from the first board to the last one off the log. The tolerance is one-directional — boards can only come out thick, never thin. It can be set finer in the settings if you're cutting to tighter tolerances.

Works in both Imperial and Metric — inches and fractions, or millimeters.

Designed for Woodland Mills Sawmills
The SW-350-PRO-WDL can be installed on any Woodland Mills sawmill equipped with a 12V battery.
It works with:
Power Head 110 — plug-and-play connection through a dedicated connector
Power Head 80 — requires an additional connector on the lifting motor wiring
Other DC lifting motors or electric winches up to 100 amps

If your sawmill currently has a manual sawhead lift, you can use the Mikron setworks in Manual mode. If you later add a powered lift system, connect it to the setworks and switch to Automatic mode in the settings.

With the SW-350-PRO-WDL, you can add professional computerized positioning to your Woodland Mills sawmill, increase productivity, improve lumber yield, and make everyday sawing easier and more enjoyable.

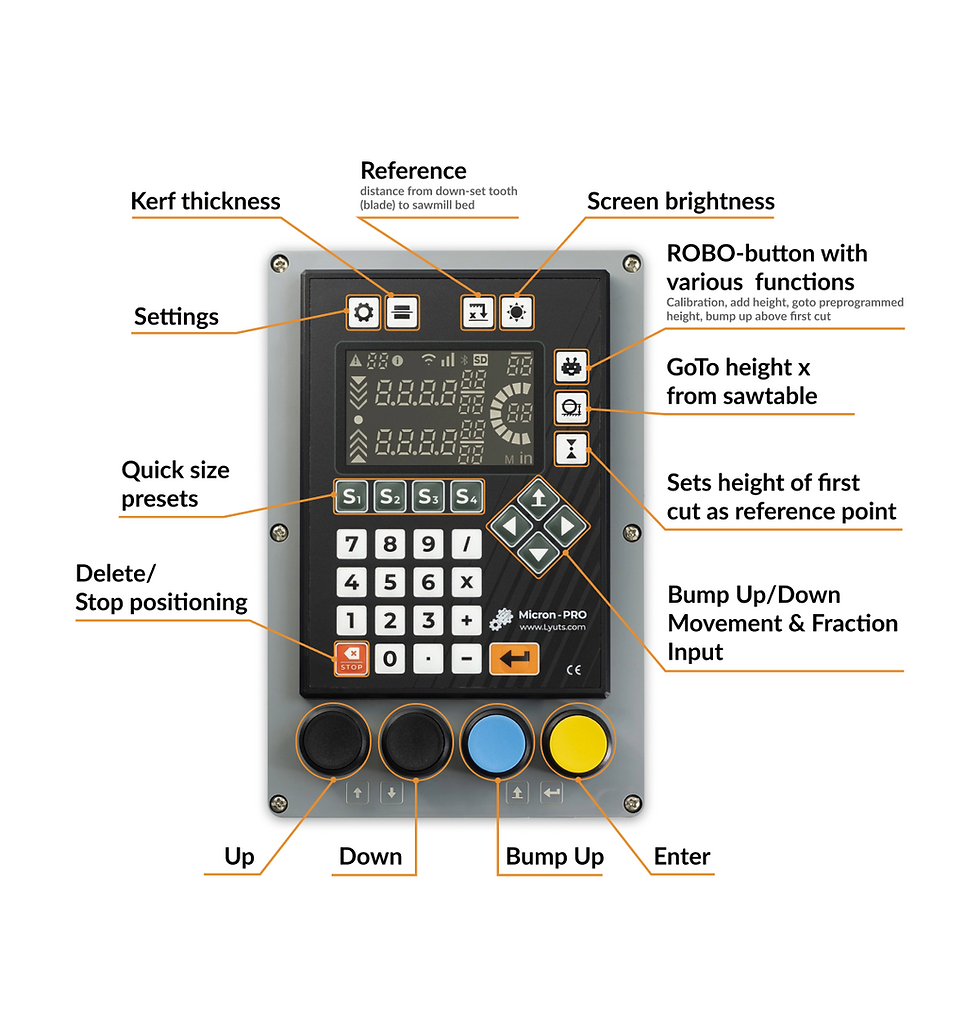

Main Functions
Board-by-Board Mode
Enter the board thickness. The setworks calculates the next cut, takes blade kerf into account, and positions the sawhead automatically.

Boards List / Cutting Pattern Mode
Enter the board thicknesses you want to cut.
For example:
2" – 1" – 1" – 1" – 3/4" – 3/4"
The setworks moves through the list cut by cut, handling the calculations, blade kerf, and sawhead positioning for you.

GOTO Mode
Enter the required sawhead height and move directly to that position.

Veneer / Thin-Slice Mode
For repetitive thin cuts of the same thickness.

4 Board Thickness Presets
Save your most frequently used board sizes for quick access.

And many more functions designed to make sawing easier and reduce manual calculations.

Easy Installation
The SW-350-PRO-WDL is designed for straightforward installation on Woodland Mills sawmills.
Install the position sensor on top of the sawhead.
Mount the control panel in a convenient location.
Connect 12 VDC power.
Connect the sensor using the industrial plug-and-play connector.
Connect the setworks to the Power Head original attachment, DC lifting motor, or 12 electric winch via dedicated connector.

Detailed installation instructions are included, and technical support is available if you need help with installation, wiring, or calibration.

The SW-350-PRO-WDL is covered by a 1-year warranty.

Need Help Before Ordering?
Please contact us with any questions.
